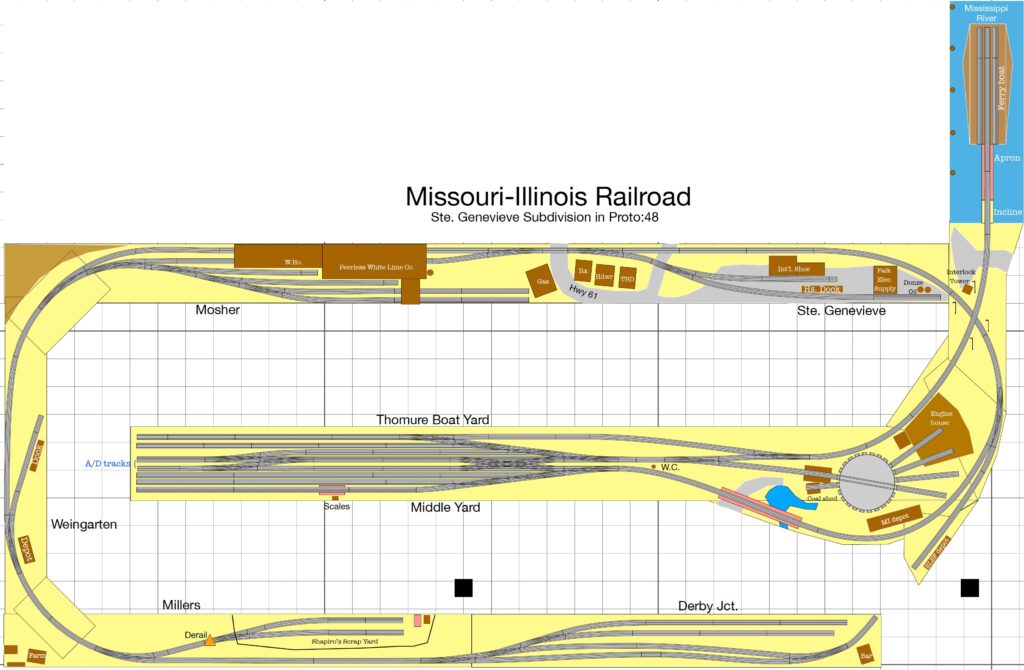

Track Plan


Layout Overview
  • Name: Missouri-Illinois Railroad, Ste Genevieve Subdivision
  • Scale: O scale Proto48 (track gauge = 1.177 inches)
  • Locale: Ozark foothills in eastern Missouri
  • Modeling era: 1950’s to mid-1960’s — ie, steam & 1st generation diesel
  • Layout size: 36 feet x 24 feet
  • Design: Single deck, around-the-walls with peninsula
  • Operations style: Point-to-point switching layout
  • Mainline run: approximately 111 feet single track
  • Track: Mostly hand laid code 125 (code 100 for several spurs); flex track in peninsula yards
  • Industry count: 9
  • Minimum curve radius: 60 inches with easements
  • Turnouts: Manual ground throws; #8 frogs (mainline and yards) and #6 frogs (industries)
  • Benchwork type: Mianne unitized frame with ¾ inch Birch plywood sub-roadbed
  • Roadbed: ¼ inch Homasote with HO scale ballast
  • Track height: 52 inches
  • Control system: NCE DCC
  • Throttles: ProtoThrottles and NCE Cab 06er throttles (operator’s choice)
  • Sound: SoundTraxx Tsunami decoders
  • Coupling: Kadee couplers & magnetic air hoses (optional)
  • Adherence to operating rules: Loose
  • Crew size: Typically 6
  • Session duration: 2-3 hours
  • Freight management: Car Cards/Waybills with optional switchlists
  • Signaling: Semaphores at interlock tower for grade crossing (PENDING)
  • Communications: Verbal authority; telephones for clearance at interlock tower (PENDING)
